SIMATIC S7-1500

Overview

The Siemens SIMATIC S7-1500 was introduced in 2012 as the direct successor to the S7-300 and S7-400 families, consolidating Siemens' mid-range and high-end PLC portfolios into a single modern platform. It is engineered for demanding manufacturing and process applications where deterministic response times, integrated safety, and seamless network connectivity are non-negotiable.

Every S7-1500 CPU ships with a built-in PROFINET interface supporting IRT (Isochronous Real-Time) communication with cycle times down to 250 µs — the same bus used by SIMOTION and SINAMICS drives. An integrated OPC UA server (available on CPU firmware ≥ V2.0) allows direct data exchange with MES and cloud systems without a gateway, making the S7-1500 a natural fit for Industry 4.0 architectures.

Programming is handled entirely within TIA Portal (Totally Integrated Automation Portal), Siemens' unified engineering framework that covers PLCs, HMIs, drives, motion, and safety in a single project tree. All five IEC 61131-3 languages are supported: LAD (ladder), FBD, STL (Statement List, IL equivalent), SCL (Structured Control Language, i.e. Structured Text), and GRAPH (Sequential Function Chart).

Key Features

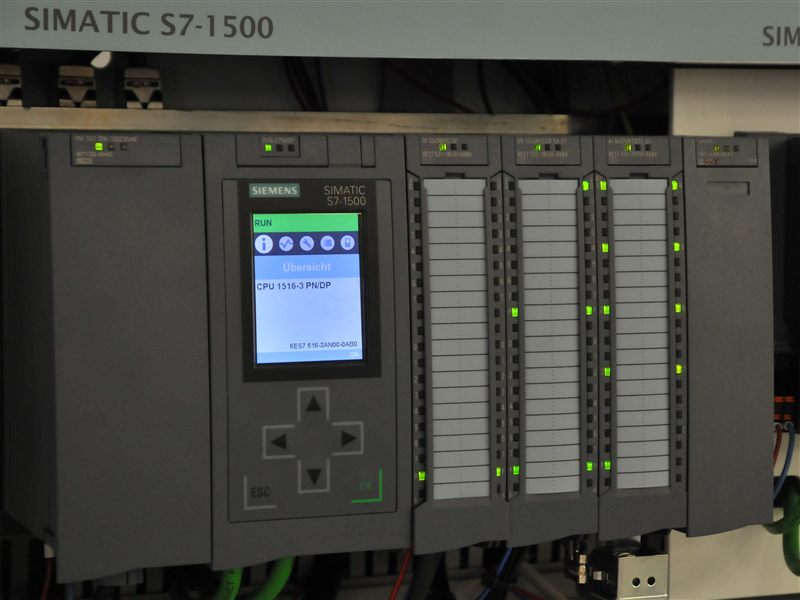

• Integrated display on every CPU

  Each S7-1500 CPU includes a front-panel display for fault diagnostics, IP configuration, and module identification without a laptop or TIA Portal connection — invaluable during commissioning and troubleshooting.
• PROFINET IRT with <250 µs cycle

  Isochronous Real-Time PROFINET enables deterministic, jitter-free communication between the CPU and intelligent field devices. Essential for high-speed motion control and synchronised multi-axis systems via shared SINAMICS drives.
• Built-in OPC UA server and client

  No gateway required to connect to MES, ERP, or cloud platforms. The OPC UA companion specification for machinery (OPC 40001) is natively supported on firmware V2.5+, simplifying integration with MQTT brokers and Azure IoT Hub.
• Trace and oscilloscope function

  The built-in trace function captures up to 16 variable signals simultaneously at scan-cycle resolution — equivalent to a logic analyser built into the PLC. Indispensable for diagnosing intermittent faults and tuning motion profiles.
• Fail-safe CPUs (F-CPUs) up to SIL 3 / PL e

  F-CPU variants run both standard and safety programs in a single CPU, eliminating the need for a separate safety PLC. The F-program uses certified F-libraries (SIMATIC Safety) and is managed within the same TIA Portal project as the standard logic.
• Technology objects for motion control

  Speed axes, positioning axes, and synchronous axes are configured as "Technology Objects" directly in TIA Portal. PLCopen MC function blocks (MC_Power, MC_MoveAbsolute, MC_GearIn, etc.) communicate over PROFINET IRT to SINAMICS drives.

Technical Specifications

CPU Model Comparison

Typical Applications

The S7-1500 is the dominant PLC in European automotive manufacturing lines, where its PROFINET IRT capability synchronises robot controllers, vision systems, and servo drives at sub-millisecond precision. In the pharmaceutical and food & beverage sectors, the F-CPU variants provide the SIL-rated safety interlocks demanded by FDA 21 CFR Part 11 and EHEDG environments.

• Automotive body-in-white: Multi-axis welding cells with SINAMICS drives via PROFINET IRT
• Pharmaceutical filling lines: F-CPUs running SIMATIC Safety interlocks + standard HMI on same CPU
• Water/wastewater: S7-1513 with ET 200SP remote I/O across large plant areas
• Printing and packaging: S7-1518 TF synchronising print register with camming Technology Objects
• Energy management: OPC UA PubSub feeding MQTT broker for real-time energy monitoring dashboards

S7-1500 vs Competitors
