ABB ACS880 Industrial Drive

ABB's all-compatible industrial drive featuring Direct Torque Control technology — delivering precise torque response without encoder feedback, SIL 3 safety functions, and flexible fieldbus connectivity for demanding process and machine applications.

Direct Torque ControlSIL 3 SafetyPROFINET / EtherNet/IP0.55–5800 kWIE2/IE3 Motor Support
AC Mains 3φ Rectifier DC Bus ~565 V · Capacitors Inverter 3φ output AC Motor IE3 Direct Torque Control Torque ref → ±1% accuracy, 1–2 ms response No encoder required · Flux observer Speed accuracy: 0.1% static (open loop) PROFINET · EtherNet/IP · PROFIBUS DP · Modbus TCP · CANopen · DeviceNet
Power range0.55 kW to 5,800 kW
ControlABB Direct Torque Control
Torque accuracy±1% (open loop)
SafetySIL 3, PLe (STO/SS1/SS2)
Supply200–690 V AC, 50/60 Hz
IP ratingIP21 / IP55 option

Overview

The ABB ACS880 is ABB's flagship "all-compatible" industrial drive, positioning itself as a universal solution for both process drives (pumps, fans, compressors, extruders) and machine drives (conveyors, hoists, cranes, winders). Its defining technology is ABB's proprietary Direct Torque Control (DTC), which directly controls motor flux and torque at the inverter level without the current and voltage regulators used in conventional vector control drives. The result is torque response times of 1–2 ms and torque accuracy of ±1% without encoder feedback — performance that older technologies required a costly encoder system to achieve.

The ACS880 lineup spans from the frame R0 (0.55 kW wall-mount) through large cabinet drives exceeding 5,800 kW, all using the same DTC algorithm, the same Drive Composer commissioning software, and the same optional fieldbus adapter modules. This consistency means an engineer trained on an ACS880-01 (single drive) can commission an ACS880-07 (cabinet drive) without learning a new user interface or parameter structure — a significant benefit for plant engineering teams maintaining a large installed base.

Built-in functional safety functions (STO, SS1, SS2, SLS, SMS, SDI, SBC) are certified to SIL 3 / PLe and are embedded in the drive's safety firmware — no external safety relay is needed for the most common safety functions. The STO (Safe Torque Off) function stops drive output without cutting main power, enabling faster machine restart after safety stop events compared to contactor-based isolation.

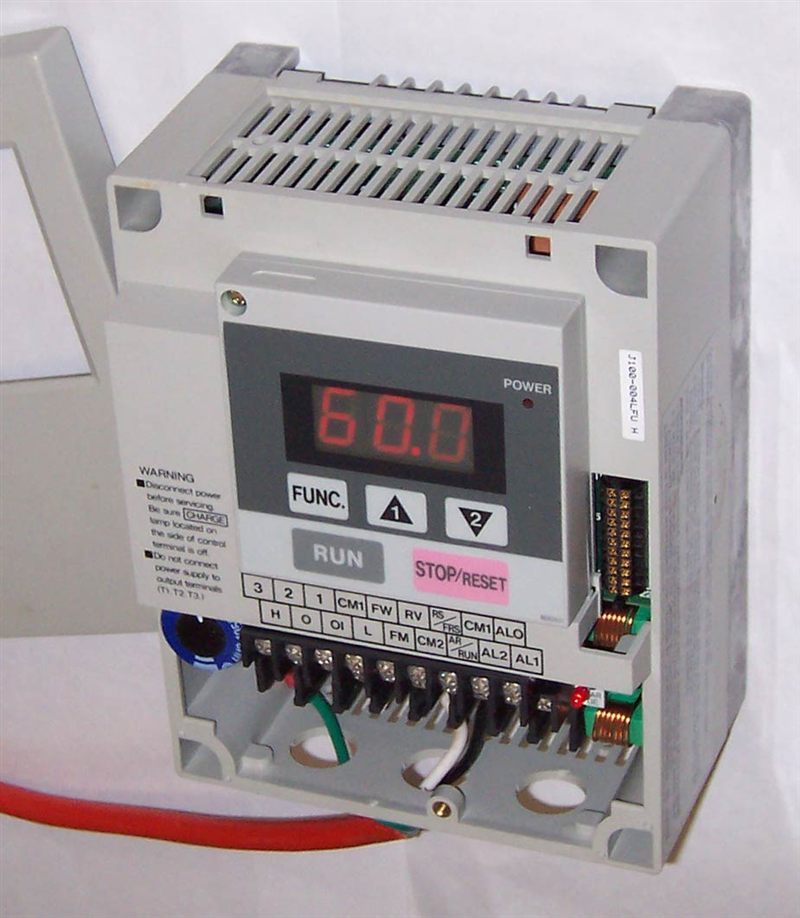

Compact variable-frequency drive unit, the same product class as the ABB ACS880 for AC motor speed and torque control
Compact variable-frequency drive (VFD) unit for AC motor speed control.

Key Features

  • Direct Torque Control — no encoder required
    DTC calculates the optimal switching sequence for the inverter IGBTs every 25 µs using a mathematical motor model, achieving 1–2 ms torque response and ±1% static torque accuracy without shaft encoder feedback. Encoder-less operation reduces sensor cost, eliminates encoder cable failures, and simplifies motor replacement on winder and crane applications.
  • SIL 3 safety — STO, SS1, SS2, SLS built-in
    Integrated safety functions eliminate the need for external safety relay modules for the most common safety scenarios. STO stops output voltage safely; SS1 ramps to zero then activates STO; SLS limits speed to a safe value. All certified to IEC 62061 SIL 3 and ISO 13849 PLe — fully documented for use in safety case submissions.
  • Flexible fieldbus via plug-in adapters
    Fieldbus connectivity is provided via snap-in adapter modules (FBA series) — PROFINET, EtherNet/IP, PROFIBUS DP, Modbus TCP, CANopen, DeviceNet, or EtherCAT. Swapping the adapter changes the protocol without any drive parameter changes, enabling a standard drive configuration across different plant network architectures.
  • Wide motor type compatibility
    The ACS880 supports AC induction motors (standard and high-efficiency), permanent magnet synchronous motors (PMSM), synchronous reluctance motors (SyRM, including ABB's IE5 HE motors), and wound-field synchronous motors — with automatic motor identification (ID run) that calibrates control parameters for any connected motor in under a minute.

Technical Specifications

ACS880-01 Single Drive — Representative Specifications
Power range (ACS880-01)0.55–250 kW (200–240 V); 0.75–250 kW (380–480 V); 1.1–250 kW (500–690 V)
Supply voltage200–240 V AC / 380–500 V AC / 500–690 V AC, 3-phase
Output frequency0–599 Hz
Overload capacity150% for 1 min every 10 min (high overload application)
Control modeDTC (sensorless), DTC (encoder), scalar (V/Hz)
Speed accuracy (OL)±0.1% of motor rated speed (static, no encoder)
Torque response1–2 ms (DTC)
Safety functionsSTO, SS1, SS2, SLS, SMS, SDI, SBC — SIL 3 / PLe
Protection classIP21 standard; IP55 option (UL Type 12)
Ambient temp−15 to +50 °C (derating above +40 °C for most frames)
Commissioning SWABB Drive Composer Entry (free) / Drive Composer Pro
CertificationsCE, UL/cUL, CSA, RCM, EAC, KC

Typical Applications

  • Overhead cranes and hoists: DTC torque accuracy for precise load control; SBC safe brake control function
  • Paper and pulp winders: Tension-controlled winding with DTC open-loop torque control and dancer roll feedback
  • Centrifugal pumps: Energy saving via affinity law; sleep mode and PID pressure control with integrated feedback
  • Extruders: High starting torque at low speed via DTC; process application macros for extruder and kneader applications
  • Marine propulsion (ACS880-07): Cabinet drives up to 5.8 MW for thruster and pump applications on offshore vessels

Sources & Further Reading

  • ABB — ACS880-01 Hardware Manual (3AXD50000016097)
  • ABB — Direct Torque Control Technical Guide No. 1 (3AFE58919219)
  • IEC 62061:2021 — Safety of machinery: Functional safety of SCS
  • IEC 61800-5-2:2016 — Adjustable speed electrical power drive systems: Safety requirements
